A 40-foot container's spec sheet says 67.7 m³. In the field, an average of 55 m³ of cargo actually fits. The 12 m³ in between is a loss that never shows up on any invoice — yet gets paid on every shipment.
CBM (cubic meter) is the volume a shipment occupies, calculated as Width (m) × Length (m) × Height (m). If you work in centimeters, multiply the three sides and divide by 1,000,000. Sea LCL, air, and road freight are all priced off this single number — no matter what your cargo weighs.
What follows is less about the formula itself and more about where the formula holds up in the field — and where it doesn't.
What Is CBM and Why Does It Beat Weight?
CBM expresses your cargo's volume in cubic meters. In international freight, two variables set a shipment's price: actual weight and volume. The carrier bills you on whichever is higher.
The reason is simple: what a ship, a truck, or an aircraft sells is not kilograms — it's space. A 500 kg pallet of marble occupies 0.5 m³; a 500 kg shipment of pillows occupies 20 m³. The carrier charges more for the second, because volume fills the vehicle long before weight does.
That's why the exporters who wrestle with CBM the most ship furniture, appliances, textiles, plastics, and packaging — all light but bulky.
Is CBM the same as volumetric weight?
No, but they're related. Volumetric (dimensional) weight converts volume into a billable weight using a divisor set by the carrier — in air freight, 1 m³ counts as 167 kg. CBM is the raw international standard: it simply measures cubic meters. (In Türkiye, domestic carriers use a similar unit called desi; 1 m³ = 333 desi.) If you ship internationally, CBM is the number your forwarder quotes against.
The CBM Formula and the Unit Trap Everyone Falls Into
The core formula is one line:
CBM = Width (m) × Length (m) × Height (m)
But measurements rarely arrive in meters. The table below shows which divisor you need for each source unit.
| Unit | Formula | Example | Result |
|---|---|---|---|
| Meters (m) | W × L × H | 1.2 × 0.8 × 0.6 | 0.576 m³ |
| Centimeters (cm) | (W × L × H) ÷ 1,000,000 | (120 × 80 × 60) ÷ 1,000,000 | 0.576 m³ |
| Millimeters (mm) | (W × L × H) ÷ 1,000,000,000 | (1200 × 800 × 600) ÷ 1,000,000,000 | 0.576 m³ |
| Inches (in) | (W × L × H) ÷ 61,024 | (47.2 × 31.5 × 23.6) ÷ 61,024 | 0.575 m³ |
| Feet (ft) | (W × L × H) × 0.0283 | (3.94 × 2.62 × 1.97) × 0.0283 | 0.575 m³ |
Total CBM for mixed cargo
With cartons of different sizes, calculate each product type separately and sum:
Total CBM = (carton₁ volume × qty) + (carton₂ volume × qty) + ...
For palletized freight, calculate per pallet, not per carton: pallet footprint × stack height (pallet thickness included). An 800×1200 mm Euro pallet (EPAL) stacked 1.80 m high = 0.8 × 1.2 × 1.8 = 1.728 m³.
Worked Example: A Furniture Shipment from Shanghai to Rotterdam

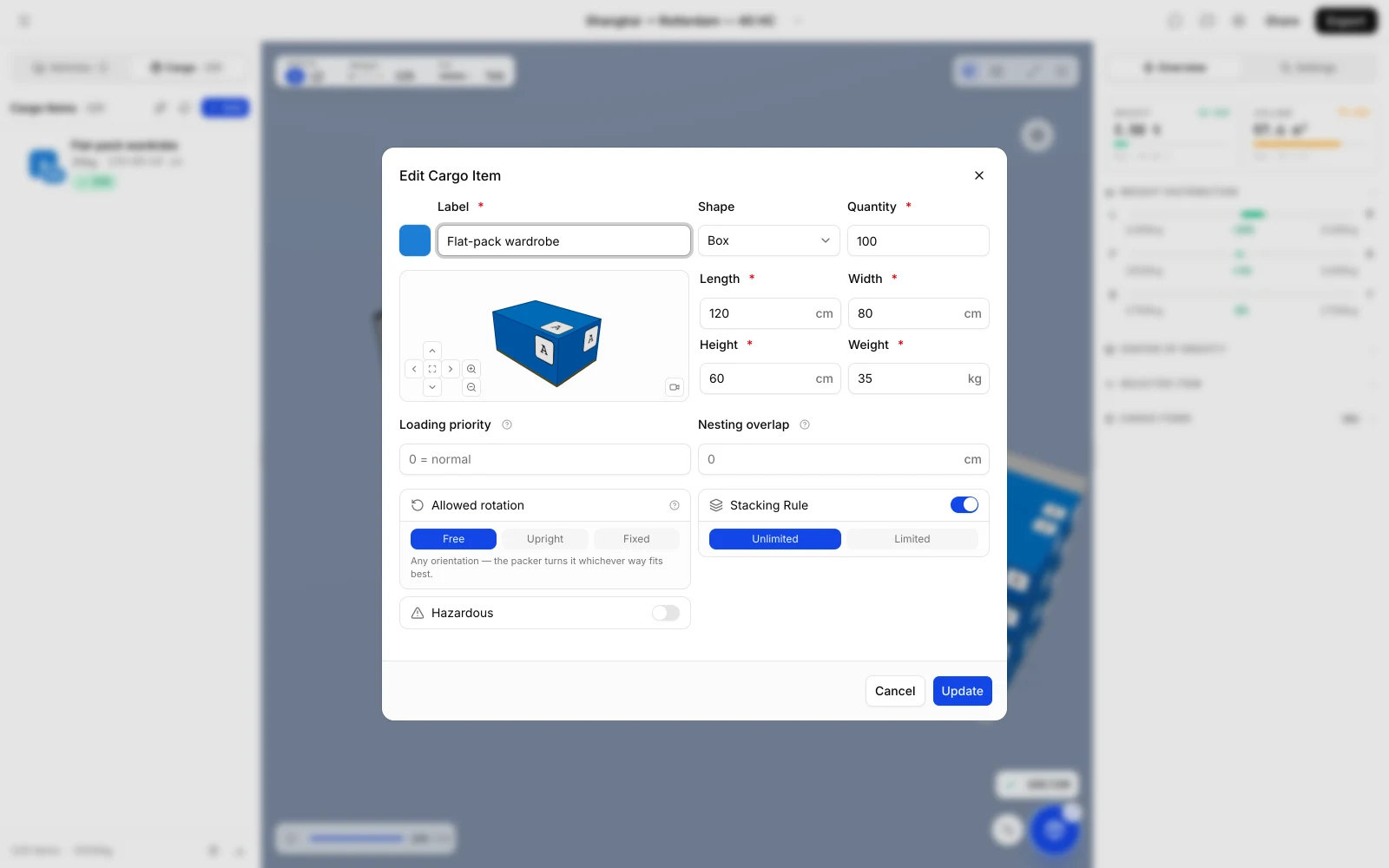

A furniture maker outside Shanghai is shipping 100 cartons of flat-pack wardrobes to a distributor in Rotterdam. The data: packaged carton size 120 × 80 × 60 cm, gross weight 35 kg per carton, quantity 100.
Step 1 — Single carton volume
(120 × 80 × 60) ÷ 1,000,000 = 0.576 m³
Step 2 — Total CBM
0.576 × 100 = 57.6 m³
Step 3 — Total gross weight
35 × 100 = 3,500 kg
Step 4 — Density check
3,500 kg ÷ 57.6 m³ = 61 kg/m³
This is a volume shipment. At 61 kg/m³ it sits far below the sea-freight assumption of 1 m³ = 1,000 kg — so volume, not weight, will be billed.
Step 5 — The equipment call

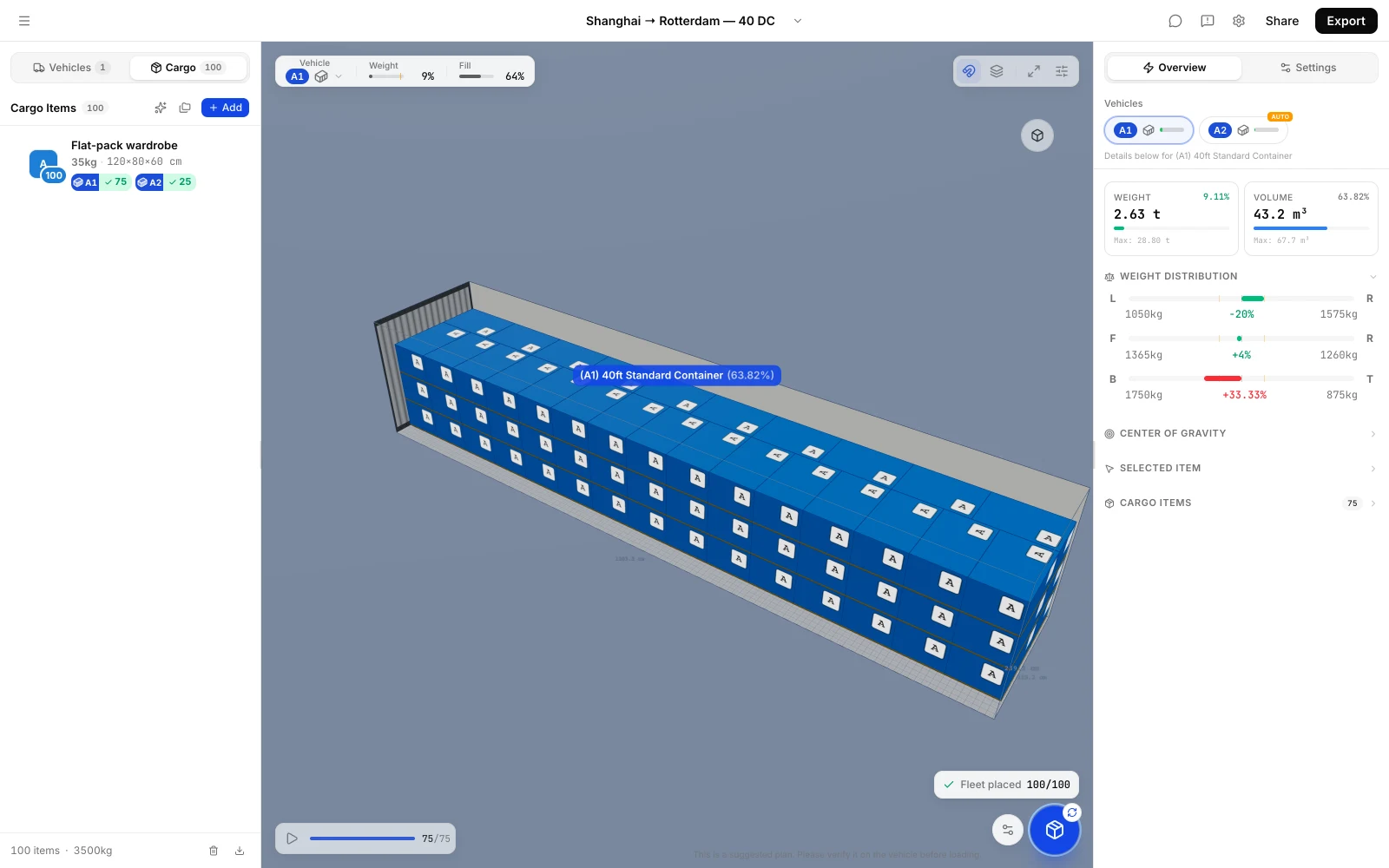

On paper, 57.6 m³ fits a 40' DC's theoretical 67.7 m³. But the interior height is 2.39 m: 60 cm cartons stack 3 layers (1.80 m), leaving 59 cm of dead air on top. In reality a 40' DC takes 75 of these cartons — 25 are left over. The 40' HC's extra 31 cm of height opens a 4th layer: all 100 cartons fit in one container at 75.5% fill.
Theoretical Volume Is Not Real Capacity
The m³ figures in container catalogs describe the empty box's mathematical volume. The dimensions come from the ISO 668 standard, and the equipment sheets of carriers like Maersk, Hapag-Lloyd, and MSC quote the same numbers. But you never get all of it: pallet feet, carton dimensions that don't divide evenly into container dimensions, stacking height limits, and weight distribution all consume volume.

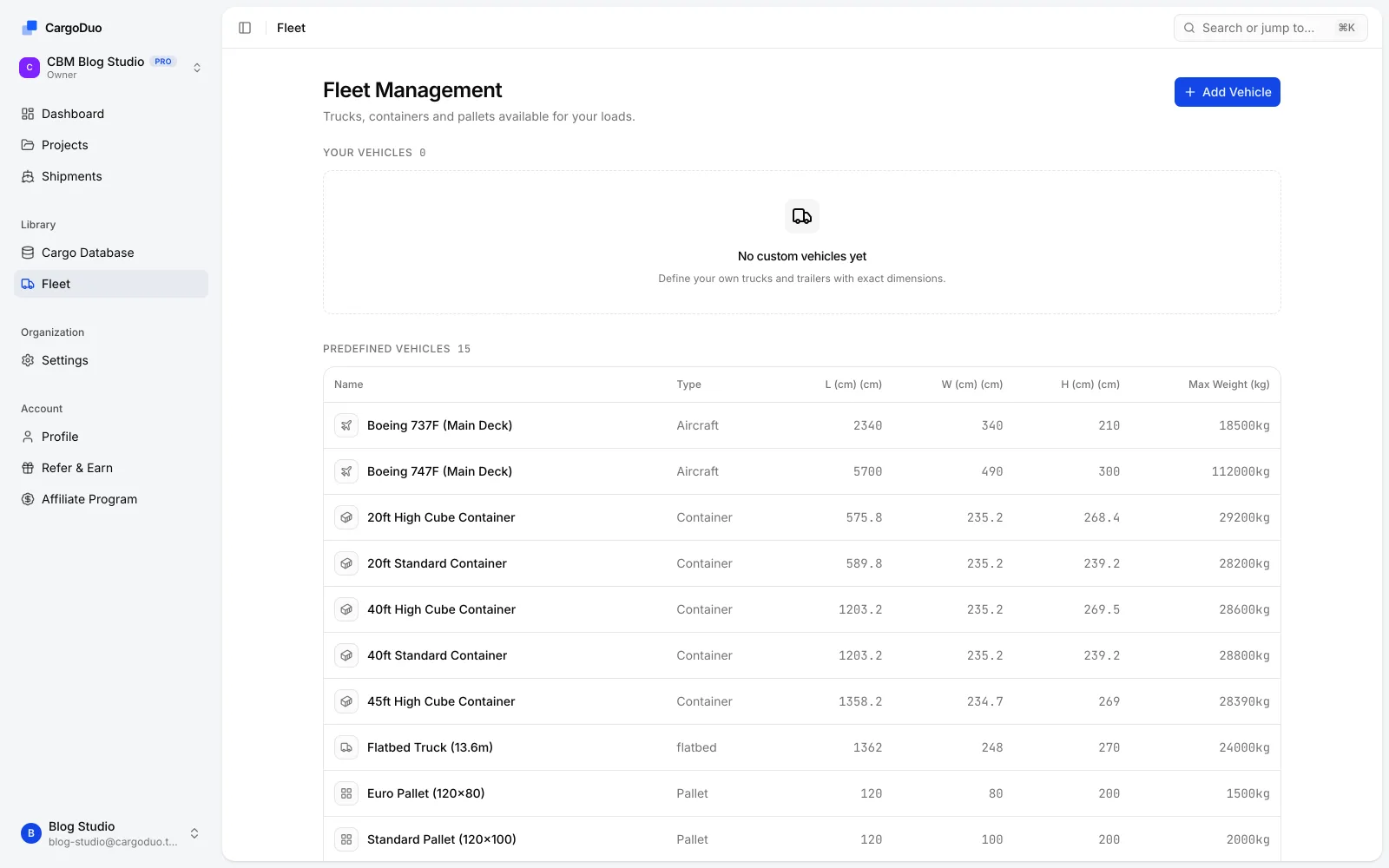

| Container type | Internal dims (L × W × H) | Theoretical | Usable in practice | Max payload |
|---|---|---|---|---|
| 20' DC | 5.89 × 2.35 × 2.39 m | ~33.1 m³ | 25–28 m³ | ~28,000 kg |
| 40' DC | 12.03 × 2.35 × 2.39 m | ~67.7 m³ | 55–60 m³ | ~26,300 kg |
| 40' HC | 12.03 × 2.35 × 2.70 m | ~76.3 m³ | 62–68 m³ | ~26,000 kg |
| 45' HC | 13.56 × 2.35 × 2.70 m | ~86.0 m³ | 70–76 m³ | ~25,600 kg |
| Curtainsider trailer (13.6 m) | 13.60 × 2.48 × 2.70 m | ~91.0 m³ | 75–82 m³ | ~22,000 kg |
A 40' HC differs only by 31 cm of extra height — but that's about 8.6 m³, i.e. 13% more volume than a standard 40'. For light, bulky cargo, not choosing HC is simply burning money.
Chargeable Weight: Sea, Air, and Road Play by Different Rules
You've calculated your CBM — the next question is whether the carrier bills you by volume or by weight. Each mode uses a different conversion factor: the air-freight divisor of 6000 comes from IATA's TACT rules, while sea LCL's W/M (weight-or-measurement) rule has been the bill-of-lading standard for decades.
| Mode | Conversion rule | 1 m³ equals | Billing logic |
|---|---|---|---|
| Sea LCL (groupage) | W/M rule | 1 m³ = 1,000 kg | Volume (m³) and weight (t) compared; the higher one is billed |
| Air (general cargo) | IATA volumetric weight, divisor 6000 | 1 m³ = 167 kg | Higher of actual vs volumetric weight |
| Air (express courier) | Divisor 5000 | 1 m³ = 200 kg | Higher of actual vs volumetric weight |
| Road LTL / groupage | LDM or volume factor | 1 m³ ≈ 333 kg / 1 LDM ≈ 1,750 kg | Varies by carrier contract |
| Sea FCL (full container) | None | — | Flat rate per container; CBM only answers “does it fit?” |
Same cargo, three different invoices
Say 12 cartons from the Shanghai shipment above go to a separate customer: 6.912 m³ of volume, 420 kg of actual weight.
| Mode | Calculation | Chargeable value |
|---|---|---|
| Sea LCL | 6.912 m³ vs 0.42 t → higher wins | billed on 6.912 CBM |
| Air (divisor 6000) | 6.912 × 167 = 1,154 kg vs 420 kg | billed on 1,154 kg |
| Air (divisor 5000) | 6.912 × 200 = 1,382 kg vs 420 kg | billed on 1,382 kg |
In air freight you pay for 1,154 kg on a 420 kg load — a volumetric factor of 2.7×. There is no clearer illustration of why packaging optimization is a finance topic, not a warehouse detail. In road groupage the math shifts from volume to loading meters (LDM).
The Invoice for a CBM Error: Two Scenarios Compared
Let's send the same 100-carton Shanghai shipment under two different plans. As the freight reference we use the Drewry World Container Index average of $4,297 per 40' container published on 6 August 2026.
| Plan A — no measurement | Plan B — CBM + load plan | |
|---|---|---|
| Calculated volume | “roughly 55 m³” (a guess) | 57.6 m³ (verified) |
| Equipment chosen | 1 × 40' DC | 1 × 40' HC |
| Outcome at the dock | 25 cartons didn't fit → 2nd container | Everything loaded in one go |
| Containers | 2 | 1 |
| Freight cost | ~$8,594 | ~$4,297 |
| Extra port/handling | Yes | None |
| Schedule | One shipment delayed | On time |
| Difference | — | ~$4,297 saved |
That's $4,300 on a single shipment. For an exporter running four shipments a month, it's an item worth over $200,000 a year — and it never appears in any cost report under “CBM error”. It hides inside “additional freight”.
The 7 Most Common CBM Mistakes in the Field
- Calculating from product dimensions. Packaging, stretch wrap, and edge protectors add 2–4 cm to every carton.
- Forgetting pallet height. A Euro pallet is 14.4 cm; across 20 pallets that's a 2.8 m³ difference.
- Using an average carton size. In mixed shipments, averaging produces deviations of up to 10%.
- Treating theoretical container volume as capacity. A container labeled 67.7 m³ will not load 67.7 m³.
- Ignoring the height constraint. If carton height doesn't divide evenly into interior height, the leftover space on top is dead volume.
- Neglecting the weight limit. You can hit the ~26 t payload cap before the volume fills — especially with ceramics, glass, and metal.
- Assuming volumetric weight is air-only. Road groupage applies a volume factor too.
The 60-second pre-loading checklist
- Are all measurements packaged outer dimensions?
- Are pallet thickness and stack height included?
- Is total CBM below the chosen container's realistic capacity?
- Is total gross weight below the payload limit?
- Was density (kg/m³) computed — is this a volume or a weight load?
- Is there an actual load plan, or just a volume total?
Where Manual Calculation Breaks Down
For a single-product, single-size shipment, a spreadsheet is enough. But if any of these three apply, manual math will inevitably produce errors:
- Mixed product range: 15 carton sizes, 400 line items — the combinatorics exceed human capacity.
- Weight and stacking rules: heavy below, fragile on top, max stack counts, axle balance. None of it enters the volume formula, yet all of it decides the layout.

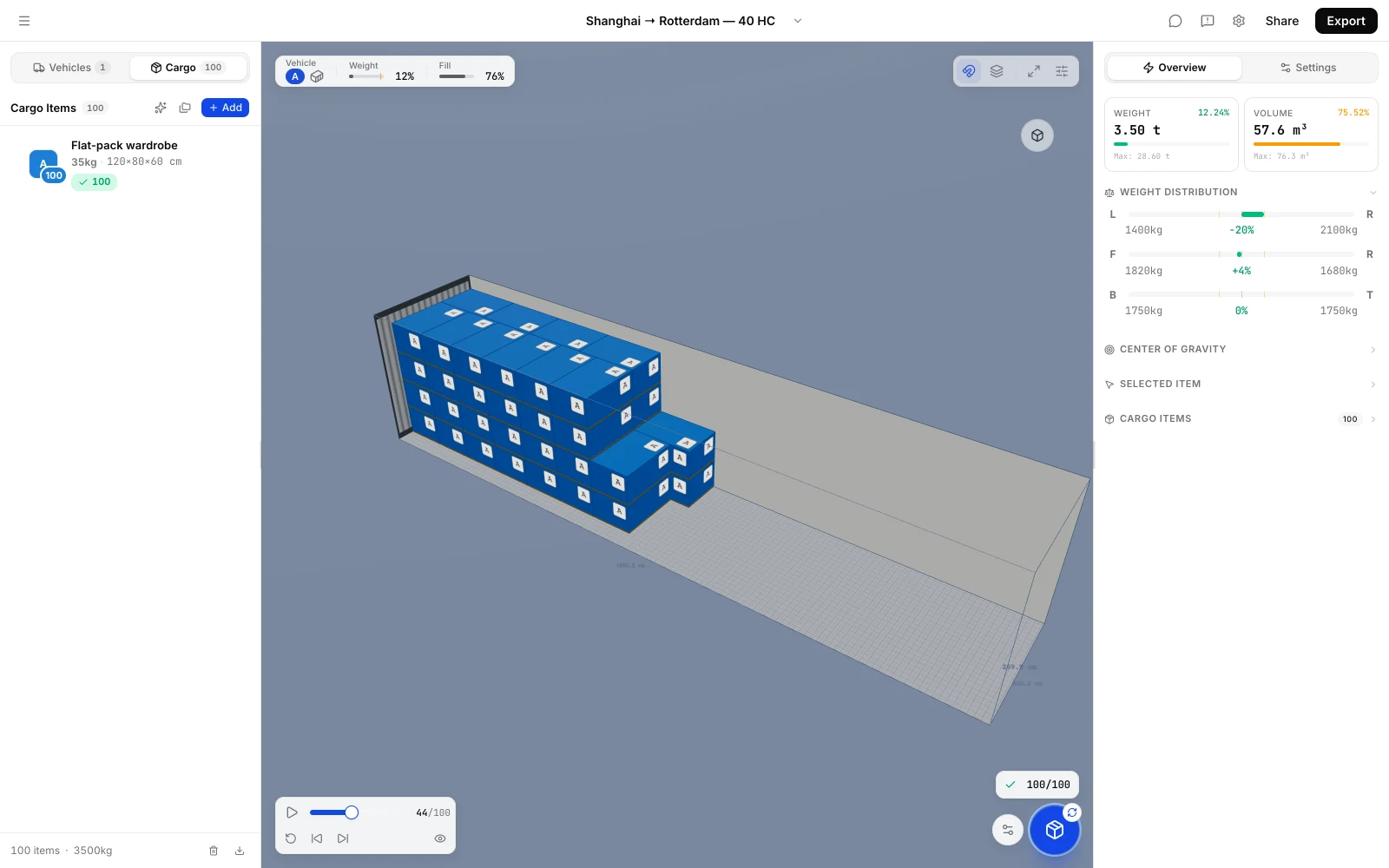

- Multi-stop loading: if you don't load in reverse route order, the first stop means unloading the whole container.

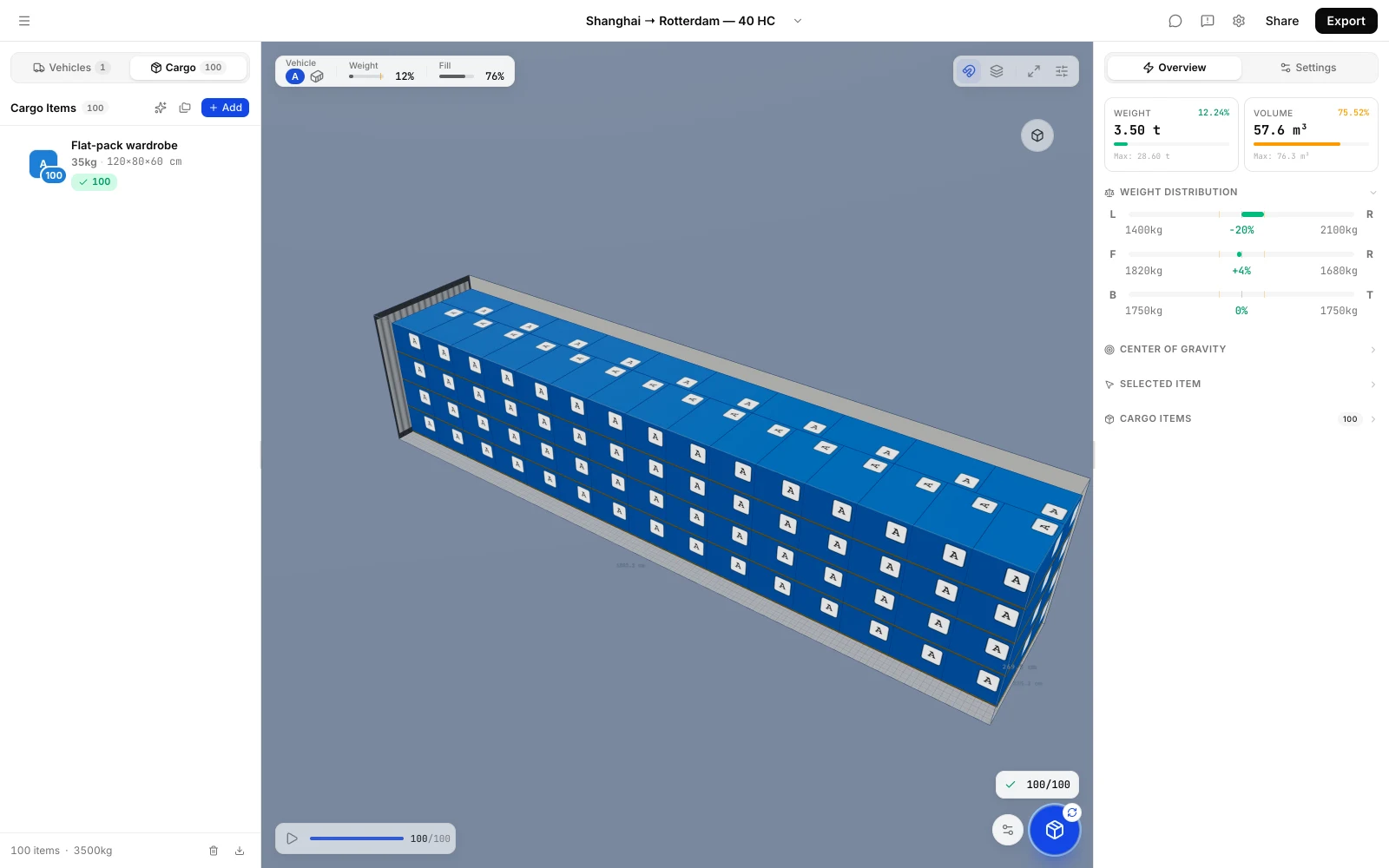

These three constraints form one optimization problem that has to be solved simultaneously — exactly what 3D load planning software does. CargoDuo pulls your dimension data from your ERP or WMS, applies weight, fragility, stacking, and route-order rules automatically, and outputs a step-by-step loading guide the dock crew opens on a phone.
Quick Reference: 6 Numbers Worth Memorizing
| Value | Equals |
|---|---|
| 1 m³ | 1,000,000 cm³ |
| 1 m³ | 333 desi (Türkiye domestic) |
| 1 m³ (air) | 167 kg volumetric weight |
| 1 m³ (sea LCL) | 1,000 kg |
| 1 LDM (road) | ~1,750 kg |
| 40' DC → 40' HC | +8.6 m³ (13% more volume) |
Conclusion: CBM Is Not a Number — It's a Decision
Calculating CBM correctly is the start of a shipment, not the end. The real gain appears when you decide which equipment that volume goes into, in what arrangement, under which rules. A 57.6 m³ load fits one container with a plan — and demands two without one.
Frequently Asked Questions
How is CBM calculated?
CBM is the product of a load's width, length, and height in meters. If you measure in centimeters, multiply the three dimensions and divide by 1,000,000. A 120 × 80 × 60 cm carton is 0.576 m³. For total CBM, multiply the single-carton volume by the quantity.
How many kg is 1 CBM?
It depends on the mode. Sea LCL counts 1 m³ = 1,000 kg; air freight counts 1 m³ = 167 kg (IATA divisor 6000); express couriers use 1 m³ = 200 kg. In road freight, carriers apply 1 m³ ≈ 333 kg or 1 LDM ≈ 1,750 kg.
How many CBM fit in a 40-foot container?
A standard 40' DC has a theoretical volume of about 67.7 m³ and a 40' HC about 76.3 m³. Due to stacking and layout losses, field-usable volume is typically 55–60 m³ for a 40' DC and 62–68 m³ for a 40' HC.
What's the difference between CBM and volumetric weight?
CBM measures raw volume in cubic meters. Volumetric weight converts that volume into a billable weight using a divisor (6000 for IATA air, 5000 for express). Carriers compare volumetric weight to actual weight and bill the higher one.
When is volumetric weight billed?
Whenever it exceeds actual weight. The carrier always compares the two and bills the higher. For light, bulky goods (textiles, furniture, packaging, plastics), the gap can reach 2–3×.
How is CBM calculated for palletized cargo?
Calculate per pallet: multiply the pallet footprint by total stack height, including the pallet's own thickness. An 800 × 1200 mm Euro pallet loaded 1.80 m high = 0.8 × 1.2 × 1.8 = 1.728 m³. Carton-by-carton math is misleading for palletized freight.
Does CBM include packaging?
Yes. CBM is always calculated from packaged outer dimensions. Carton, stretch film, edge protectors, lid overhang, and pallet height are all included. Calculating from bare product dimensions ends with cargo that doesn't fit at the dock.
Does CBM matter for FCL shipments?
Not for pricing directly — FCL freight is a flat rate per container. But CBM decides which container type you book and whether the load fits in one trip. A wrong CBM means booking a second container.
Container interior dimensions per ISO 668 and carrier equipment catalogs (Maersk, Hapag-Lloyd, MSC); volumetric divisors per IATA TACT rules. Freight reference: Drewry World Container Index, 6 August 2026 — spot rates change weekly; confirm current rates with your carrier. Payload figures vary ±500 kg by carrier and container age.
